Most Common L2L and Remote Access IPsec VPN Troubleshooting Solutions

Contents

Introduction

This document contains the most common solutions to IPsec VPN problems. These solutions come directly from service requests that the Cisco Technical Support have solved. Many of these solutions can be implemented prior to the in-depth troubleshooting of an IPsec VPN connection. As a result, this document provides a checklist of common procedures to try before you begin to troubleshoot a connection and call Cisco Technical Support.

If you need configuration example documents for the site-to-site VPN and remote access VPN, refer to the Remote Access VPN, Site to Site VPN (L2L) with PIX, Site to Site VPN (L2L) with IOS, and Site to Site VPN (L2L) with VPN3000 sections of Configuration Examples and TechNotes.

Note: Even though the configuration examples in this document are for use on routers and security appliances, nearly all of these concepts are also applicable to the VPN 3000 concentrator.

Note: Refer to IP Security Troubleshooting – Understanding and Using debug Commands to provide an explanation of common debug commands that are used to troubleshoot IPsec issues on both the Cisco IOS® Software and PIX.

Note: ASA/PIX will not pass multicast traffic over IPsec VPN tunnels.

Note: You can look up any command used in this document with the Command Lookup Tool (registered customers only).

warning Warning: Many of the solutions presented in this document can lead to a temporary loss of all IPsec VPN connectivity on a device. It is recommended that these solutions be implemented with caution and in accordance with your change control policy.

Prerequisites

Requirements

Cisco recommends that you have knowledge of IPsec VPN configuration on these Cisco devices:

  • Cisco PIX 500 Series Security Appliance
  • Cisco ASA 5500 Series Security Appliance
  • Cisco IOS Routers
  • Cisco VPN 3000 Series Concentrators (Optional)

Components Used

The information in this document is based on these software and hardware versions:

  • Cisco ASA 5500 Series Security Appliance
  • Cisco PIX 500 Series Security Appliance
  • Cisco IOS

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, make sure that you understand the potential impact of any command.

Conventions

Refer to Cisco Technical Tips Conventions for more information on document conventions.

IPsec VPN Configuration Does Not Work

Problem

A recently configured or modified IPsec VPN solution does not work.

A current IPsec VPN configuration no longer works.

Solutions

This section contains solutions to the most common IPsec VPN problems. Although they are not listed in any particular order, these solutions can be used as a checklist of items to verify or try before you engage in in-depth troubleshooting and call the TAC. All of these solutions come directly from TAC service requests and have resolved numerous customer issues.

Note: Some of the commands in these sections have been brought down to a second line due to spatial considerations.

Enable NAT-Traversal (#1 RA VPN Issue)

NAT-Traversal or NAT-T allows VPN traffic to pass through NAT or PAT devices, such as a Linksys SOHO router. If NAT-T is not enabled, VPN Client users often appear to connect to the PIX or ASA without a problem, but they are unable to access the internal network behind the security appliance.

If you do not enable the NAT-T in the NAT/PAT Device, you can receive the regular translation creation failed for protocol 50 src inside:10.0.1.26 dst outside:10.9.69.4 error message in the PIX/ASA.

Similarly, if you are unable to do simultaneous login from the same IP address, the Secure VPN connection terminated locally by client. Reason 412: The remote peer is no longer responding. error message appears. Enable NAT-T in the head end VPN device in order to resolve this error.

Note: With Cisco IOS Software Release 12.2(13)T and later, NAT-T is enabled by default in Cisco IOS.

Here is the command to enable NAT-T on a Cisco Security Appliance. The 20 in this example is the keepalive time (default).

PIX/ASA 7.1 and earlier

pix(config)#isakmp nat-traversal 20

PIX/ASA 7.2(1) and later

securityappliance(config)#crypto isakmp nat-traversal 20

The clients need to be modified as well in order for it to work.

In Cisco VPN Client, choose to Connection Entries and click Modify. It opens a new window where you have to choose theTransport tab. Under this tab, choose Enable Transparent Tunneling and the IPSec over UDP ( NAT / PAT ) radio button. Then click Save and test the connection.

Note: This command is the same for both PIX 6.x and PIX/ASA 7.x.

Note: It is important to allow the UDP 4500 for NAT-T, UDP 500 and ESP ports by the configuration of an ACL because the PIX/ASA acts as a NAT device. Refer to Configuring an IPsec Tunnel through a Firewall with NAT for more information in order to learn more about the ACL configuration in PIX/ASA.

VPN Concentrator

Choose Configuration > Tunneling and Security > IPSEC > NAT Transparency > Enable: IPsec over NAT-T in order to enable NAT-T on the VPN Concentrator.

Note:  NAT-T also lets multiple VPN clients to connect through a PAT device at same time to any head end whether it is PIX, Router or Concentrator.

Test Connectivity Properly

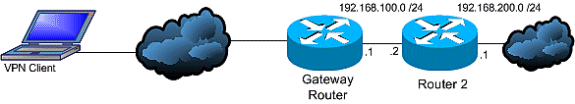

Ideally, VPN connectivity is tested from devices behind the endpoint devices that do the encryption, yet many users test VPN connectivity with the ping command on the devices that do the encryption. While the ping generally works for this purpose, it is important to source your ping from the correct interface. If the ping is sourced incorrectly, it can appear that the VPN connection has failed when it really works. Take this scenario as an example:


Router A crypto ACL

access-list 110 permit ip 192.168.100.0 0.0.0.255 192.168.200.0 0.0.0.255

Router B crypto ACL

access-list 110 permit ip 192.168.200.0 0.0.0.255 192.168.100.0 0.0.0.255

In this situation, a ping must be sourced from the “inside” network behind either router. This is because the crypto ACLs are only configured to encrypt traffic with those source addresses. A ping sourced from the Internet-facing interfaces of either router are not encrypted. Use the extended options of the ping command in privileged EXEC mode to source a ping from the “inside” interface of a router:

routerA#ping
Protocol [ip]:
Target IP address: 192.168.200.10
Repeat count [5]:
Datagram size [100]:
Timeout in seconds [2]:
Extended commands [n]: y
Source address or interface: 192.168.100.1
Type of service [0]:
Set DF bit in IP header? [no]:
Validate reply data? [no]:
Data pattern [0xABCD]:
Loose, Strict, Record, Timestamp, Verbose[none]:
Sweep range of sizes [n]:
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.200.1, timeout is 2 seconds:
Packet sent with a source address of 192.168.100.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = ½/4 ms

Imagine that the routers in this diagram have been replaced with PIX or ASA security appliances. The ping used to test connectivity can also be sourced from the inside interface with the inside keyword:

securityappliance#ping inside 192.168.200.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.200.10, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

Note: It is not recommended that you target the inside interface of a security appliance with your ping. If you must target the inside interface with your ping, you must enable management-access on that interface, or the appliance does not reply.

securityappliance(config)#management-access inside

Note: When a problem exist with the connectivity, even phase 1 of VPN does not come up. On the ASA, if connectivity fails, the SA output is similar to this example, which indicates possibly an incorrect crypto peer configuration and/or incorrect ISAKMP proposal configuration:

Router#show crypto isakmp sa

1   IKE Peer: XX.XX.XX.XX
    Type    : L2L             Role    : initiator
    Rekey   : no              State   : MM_WAIT_MSG2

Note: The state could be from MM_WAIT_MSG2 to MM_WAIT_MSG5, which denotes failure of concerned state exchange in main mode (MM).

Note: Crypto SA output when the phase 1 is up is similar to this example:

Router#show crypto isakmp sa

1   IKE Peer: XX.XX.XX.XX
    Type    : L2L             Role    : initiator
    Rekey   : no              State   : MM_ACTIVE

Enable ISAKMP

If there is no indication that an IPsec VPN tunnel comes up at all, it possibly is due to the fact that ISAKMP has not been enabled. Be sure that you have enabled ISAKMP on your devices. Use one of these commands to enable ISAKMP on your devices:

  • Cisco IOS
    router(config)#crypto isakmp enable

  • Cisco PIX 7.1 and earlier (replace outside with your desired interface)
    pix(config)#isakmp enable outside

  • Cisco PIX/ASA 7.2(1) and later (replace outside with your desired interface)
    securityappliance(config)#crypto isakmp enable outside


You can also get this error when you enable the ISAKMP on the outside interface:

UDP: ERROR - socket <unknown> 62465 in used
ERROR: IkeReceiverInit, unable to bind to port

The cause of the error can be that the Client behind ASA/PIS gets PAT’d to udp port 500 before isakmp can be enabled on the interface. Once that PAT translation is removed (clear xlate), the isakmp is able to be enabled.

Note: Always make sure that UDP 500 and 4500 port numbers are reserved for the negotiation of ISAKMP connections with the peer.

Note: When the ISAKMP is not enabled on the interface, the VPN client shows an error message similar to this message:

Secure VPN connection terminated locally by client.
Reason 412: The remote peer is no longer responding

Note: In order to resolve this error, enable the ISAKMP on the crypto interface of the VPN gateway.

Enable/Disable PFS

In IPsec negotiations, Perfect Forward Secrecy (PFS) ensures that each new cryptographic key is unrelated to any previous key. Either enable or disable PFS on both the tunnel peers; otherwise, the LAN-to-LAN (L2L) IPsec tunnel is not established in the PIX/ASA/IOS router.

PIX/ASA:

PFS is disabled by default. In order to enable PFS, use the pfs command with the enable keyword in group-policy configuration mode. In order to disable PFS, enter the disable keyword.

hostname(config-group-policy)#pfs {enable | disable}

In order to remove the PFS attribute from the running configuration, enter the no form of this command. A group policy can inherit a value for PFS from another group policy. Enter the no form of this command in order to prevent inheriting a value.

hostname(config-group-policy)#no pfs

IOS Router:

In order to specify that IPsec must ask for PFS when new Security Associations are requested for this crypto map entry, or that IPsec requires PFS when it receives requests for new Security Associations, use the set pfs command in crypto map configuration mode. In order to specify that IPsec must not request PFS, use the no form of this command. By default, PFS is not requested. If no group is specified with this command, group1 is used as the default.

set pfs [group1 | group2]
no set pfs

For the set pfs command:

  • group1 —Specifies that IPsec must use the 768-bit Diffie-Hellman prime modulus group when the new Diffie-Hellman exchange is performed.
  • group2 —Specifies that IPsec must use the 1024-bit Diffie-Hellman prime modulus group when the new Diffie-Hellman exchange is performed.

Example:

Router(config)#crypto map map 10 ipsec-isakmp
Router(config-crypto-map)#set pfs group2

Note:  Perfect Forward Secrecy (PFS) is Cisco proprietary and is not supported on third party devices.

Clear Old or Existing Security Associations (Tunnels)

If this error message occurs in the IOS Router, the problem is that the SA has either expired or been cleared. The remote tunnel end device does not know that it uses the expired SA to send a packet (not a SA establishment packet). When a new SA has been established, the communication resumes, so initiate the interesting traffic across the tunnel to create a new SA and re-establish the tunnel.

%CRYPTO-4-IKMP_NO_SA: IKE message from x.x.x.x  has no SA

If you clear ISAKMP (Phase I) and IPsec (Phase II) security associations (SAs), it is the simplest and often the best solution to resolve IPsec VPN problems.

If you clear SAs, you can frequently resolve a wide variety of error messages and strange behaviors without the need to troubleshoot. While this technique can easily be used in any situation, it is almost always a requirement to clear SAs after you change or add to a current IPsec VPN configuration. Moreover, while it is possible to clear only specific security associations, the most benefit can come from when you clear SAs globally on the device.

Note: Once the Security Associations have been cleared, it can be necessary to send traffic across the tunnel to re-establish them.

warning Warning: Unless you specify which security associations to clear, the commands listed here can clear all security associations on the device. Proceed with caution if other IPsec VPN tunnels are in use.

  1. View Security Associations before you clear them
    1. Cisco IOS
      router#show crypto isakmp sa
      router#show crypto ipsec sa

    2. Cisco PIX/ASA Security Appliances
      securityappliance#show crypto isakmp sa
      securityappliance#show crypto ipsec sa


      Note: These commands are the same for both Cisco PIX 6.x and PIX/ASA 7.x

  2. Clear Security Associations. Each command can be entered as shown in bold or entered with the options shown with them.
    1. Cisco IOS
      1. ISAKMP (Phase I)
        router#clear crypto isakmp ?
          <0 - 32766>  connection id of SA
          <cr>
      2. IPsec (Phase II)
        router#clear crypto sa ?
          counters  Reset the SA counters
          map       Clear all SAs for a given crypto map
          peer      Clear all SAs for a given crypto peer
          spi       Clear SA by SPI
          <cr>
    2. Cisco PIX/ASA Security Appliances
      1. ISAKMP (Phase I)
        securityappliance#clear crypto isakmp sa

      2. IPsec (Phase II)
        security appliance#clear crypto ipsec sa ?

          counters  Clear IPsec SA counters
          entry     Clear IPsec SAs by entry
          map       Clear IPsec SAs by map
          peer      Clear IPsec SA by peer
          <cr>

Verify ISAKMP Lifetime

If the users are frequently disconnected across the L2L tunnel, the problem can be the lesser lifetime configured in ISAKMP SA. If any discrepancy occurs in the ISAKMP lifetime, you can receive the %PIX|ASA-5-713092: Group = x.x.x.x, IP = x.x.x.x, Failure during phase 1 rekeying attempt due to collision error message in PIX/ASA. For FWSM, you can receive the %FWSM-5-713092: Group = x.x.x.x, IP = x.x.x.x, Failure during phase 1 rekeying attempt due to collision error message. Configure the same value in both the peers in order to fix it.

The default is 86,400 seconds or 24 hours. As a general rule, a shorter lifetime provides more secure ISAKMP negotiations (up to a point), but, with shorter lifetimes, the security appliance sets up future IPsec SAs more quickly.

A match is made when both policies from the two peers contain the same encryption, hash, authentication, and Diffie-Hellman parameter values, and when the policy of the remote peer specifies a lifetime less than or equal to the lifetime in the compared policy. If the lifetimes are not identical, the shorter lifetime—from the policy of the remote peer—is used. If no acceptable match is found, the IKE refuses negotiation, and the IKE SA is not established.

Specify the SA lifetime. This examples sets a lifetime of 4 hours (14400 seconds). The default is 86400 seconds (24 hours).

PIX/ASA

hostname(config)#isakmp policy 2 lifetime  14400

IOS Router

R2(config)#crypto isakmp policy 10
R2(config-isakmp)#lifetime 86400

If the maximum configured lifetime is exceeded, you receive this error message when the VPN connection is terminated:

Secure VPN Connection terminated locally by the Client. Reason 426: Maximum Configured Lifetime Exceeded.

In order to resolve this error message, set the lifetime value to 0 in order to set the lifetime of an IKE security association to infinity. The VPN will always be connection and will not terminate.

hostname(config)#isakmp policy 2 lifetime 0

You can also disable re-xauth in the group-policy in order to resolve the issue.

Enable or Disable ISAKMP Keepalives

If you configure ISAKMP keepalives, it helps prevent sporadically dropped LAN-to-LAN or Remote Access VPN, which includes VPN clients, tunnels and the tunnels that are dropped after a period of inactivity. This feature lets the tunnel endpoint monitor the continued presence of a remote peer and report its own presence to that peer. If the peer becomes unresponsive, the endpoint removes the connection. In order for ISAKMP keepalives to work, both VPN endpoints must support them.

  • Configure ISAKMP keepalives in Cisco IOS with this command:
    router(config)#crypto isakmp keepalive 15

  • Use these commands to configure ISAKMP keepalives on the PIX/ASA Security Appliances:
    • Cisco PIX 6.x
      pix(config)#isakmp keepalive 15

    • Cisco PIX/ASA 7.x and later, for the tunnel group named 10.165.205.222
      securityappliance(config)#tunnel-group 10.165.205.222
         ipsec-attributes

      securityappliance(config-tunnel-ipsec)#isakmp keepalive
         threshold 15 retry 10



    In some situations, it is necessary to disable this feature in order to solve the problem, for example, if the VPN Client is behind a Firewall that prevents DPD packets.

    Cisco PIX/ASA 7.x and later, for the tunnel group named 10.165.205.222

    Disables IKE keepalive processing, which is enabled by default.

    securityappliance(config)#tunnel-group 10.165.205.222
       ipsec-attributes

    securityappliance(config-tunnel-ipsec)#isakmp keepalive disable


    Disable Keepalive for Cisco VPN Client 4.x

    Choose %System Root% > Program Files > Cisco Systems >VPN Client > Profiles on the Client PC that experiences the issue in order to disable IKE keepalive, and edit the PCF file , where applicable, for the connection.

    Change the ‘ForceKeepAlives=0’ (default) to ‘ForceKeepAlives=1’.

Note: Keepalives are Cisco proprietary and are not supported by third party devices.

Re-Enter or Recover Pre-Shared-Keys

In many cases, a simple typo can be to blame when an IPsec VPN tunnel does not come up. For example, on the security appliance, pre-shared keys become hidden once they are entered. This obfuscation makes it impossible to see if a key is incorrect.Be certain that you have entered any pre-shared-keys correctly on each VPN endpoint. Re-enter a key to be certain that it is correct; this is a simple solution that can help avoid in-depth troubleshooting.

In Remote Access VPN, check that the valid group name and preshared key are entered in the CiscoVPN Client. You can face this error if the group name/ preshared key are not matched between the VPN Client and the head-end device.

 1 12:41:51.900 02/18/06 Sev=Warning/3 IKE/0xE3000056
 The received HASH payload cannot be verified
 2 12:41:51.900 02/18/06 Sev=Warning/2 IKE/0xE300007D
Hash verification failed
3      14:37:50.562  10/05/06  Sev=Warning/2 IKE/0xE3000099
Failed to authenticate peer (Navigator:904)
4      14:37:50.593  10/05/06  Sev=Warning/2 IKE/0xE30000A5
Unexpected SW error occurred while processing Aggressive Mode
negotiator:(Navigator:2202)
5      14:44:15.937  10/05/06  Sev=Warning/2 IKE/0xA3000067
Received Unexpected InitialContact Notify (PLMgrNotify:888)
6      14:44:36.578  10/05/06  Sev=Warning/3 IKE/0xE3000056
The received HASH payload cannot be verified
7      14:44:36.593  10/05/06  Sev=Warning/2 IKE/0xE300007D
Hash verification failed... may be configured with invalid group password.
8      14:44:36.609  10/05/06  Sev=Warning/2 IKE/0xE3000099
Failed to authenticate peer (Navigator:904)
9      14:44:36.640  10/05/06  Sev=Warning/2 IKE/0xE30000A5
Unexpected SW error occurred while processing Aggressive Mode
negotiator:(Navigator:2202)

You can also recover a pre-shared key without any configuration changes on the PIX/ASA security appliance. Refer to PIX/ASA 7.x: Pre-shared Key Recovery.

warning Warning: If you remove crypto-related commands, you are likely to bring down one or all of your VPN tunnels. Use these commands with caution and refer to the change control policy of your organization before you follow these steps.

  • Use these commands to remove and re-enter the pre-shared-key secretkey for the peer 10.0.0.1 or the group vpngroup in IOS:
    • Cisco LAN-to-LAN VPN
      router(config)#no crypto isakmp key secretkey
         address 10.0.0.1
      router(config)#crypto isakmp key secretkey
         address 10.0.0.1

    • Cisco Remote Access VPN
      router(config)#crypto isakmp client configuration
         group vpngroup
      router(config-isakmp-group)#no key secretkey
      router(config-isakmp-group)#key secretkey

  • Use these commands to remove and re-enter the pre-shared-key secretkey for the peer 10.0.0.1 on PIX/ASA Security Appliances:
    • Cisco PIX 6.x
      pix(config)#no isakmp key secretkey address 10.0.0.1
      pix(config)#isakmp key secretkey address 10.0.0.1

    • Cisco PIX/ASA 7.x and later
      securityappliance(config)#tunnel-group 10.0.0.1
         ipsec-attributes
      securityappliance(config-tunnel-ipsec)#no pre-shared-key
      securityappliance(config-tunnel-ipsec)#pre-shared-key
         secretkey


Mismatched Pre-shared Key

The initiation of VPN Tunnel gets disconnected. This issue might occur because of a mismatched pre-shared-key during the phase I negotiations.

The MM_WAIT_MSG_6 message in the show crypto isakmp sa command indicates a mismatched pre-shared-key as shown in this example:

ASA#show crypto isakmp sa

Active SA: 1
Rekey SA: 0 (A tunnel will report 1 Active and 1 Rekey SA during rekey)
Total IKE SA: 1

1         IKE Peer: 10.7.13.20
             Type : L2L                                 Role : initiator
             Rekey : no                                 State : MM_WAIT_MSG_6

In order to resolve this issue, re-enter the pre-shared key in both appliances; the pre-shared-key must be unique and matched. SeeRe-Enter or Recover Pre-Shared-Keys for more information.

Remove and Re-apply Crypto Maps

When you clear security associations, and it does not resolve an IPsec VPN issue, remove and reapply the relevant crypto map in order to resolve a wide variety of issues that includes intermittent dropping of VPN tunnel and failure of some VPN sites to come up.

warning Warning: If you remove a crypto map from an interface, it definitely brings down any IPsec tunnels associated with that crypto map. Follow these steps with caution and consider the change control policy of your organization before you proceed.

  • Use these commands to remove and replace a crypto map in Cisco IOS:Begin with the removal of the crypto map from the interface. Use the no form of the crypto map command.
    router(config-if)#no crypto map mymap


    Continue to use the no form to remove an entire crypto map.

    router(config)#no crypto map mymap 10


    Replace the crypto map on interface Ethernet0/0 for the peer 10.0.0.1. This example shows the minimum required crypto map configuration:

    router(config)#crypto map mymap 10 ipsec-isakmp
    router(config-crypto-map)#match address 101
    router(config-crypto-map)#set transform-set mySET
    router(config-crypto-map)#set peer 10.0.0.1
    router(config-crypto-map)#exit
    router(config)#interface ethernet0/0
    router(config-if)#crypto map mymap

  • Use these commands to remove and replace a crypto map on the PIX or ASA:Begin with the removal of the crypto map from the interface. Use the no form of the crypto map command.
    securityappliance(config)#no crypto map mymap interface outside


    Continue to use the no form to remove the other crypto map commands.

    securityappliance(config)#no crypto map mymap 10 match
       address 101
    securityappliance(config)#no crypto map mymap set
       transform-set mySET
    securityappliance(config)#no crypto map mymap set
       peer 10.0.0.1


    Replace the crypto map for the peer 10.0.0.1. This example shows the minimum required crypto map configuration:

    securityappliance(config)#crypto map mymap 10 ipsec-isakmp
    securityappliance(config)#crypto map mymap 10
       match address 101
    securityappliance(config)#crypto map mymap 10 set
       transform-set mySET
    securityappliance(config)#crypto map mymap 10 set
       peer 10.0.0.1
    securityappliance(config)#crypto map mymap interface outside


Note: If you remove and reapply the crypto map, this also resolves the connectivity issue if the IP address of head end has been changed.

Verify that sysopt Commands are Present (PIX/ASA Only)

The commands sysopt connection permit-ipsec and sysopt connection permit-vpn allow packets from an IPsec tunnel and their payloads to bypass interface ACLs on the security appliance. IPsec tunnels that are terminated on the security appliance are likely to fail if one of these commands is not enabled.

In Security Appliance Software Version 7.0 and earlier, the relevant sysopt command for this situation is sysopt connection permit-ipsec.

In Security Appliance Software Version 7.1(1) and later, the relevant sysopt command for this situation is sysopt connection permit-vpn.

In PIX 6.x, this functionality is disabled by default. With PIX/ASA 7.0(1) and later, this functionality is enabled by default. Use these show commands to determine if the relevant sysopt command is enabled on your device:

  • Cisco PIX 6.x
    pix# show sysopt
    no sysopt connection timewait
    sysopt connection tcpmss 1380
    sysopt connection tcpmss minimum 0
    no sysopt nodnsalias inbound
    no sysopt nodnsalias outbound
    no sysopt radius ignore-secret
    no sysopt uauth allow-http-cache
    no sysopt connection permit-ipsec

    !--- sysopt connection permit-ipsec is disabled

    no sysopt connection permit-pptp
    no sysopt connection permit-l2tp
    no sysopt ipsec pl-compatible

  • Cisco PIX/ASA 7.x
    securityappliance# show running-config all sysopt
    no sysopt connection timewait
    sysopt connection tcpmss 1380
    sysopt connection tcpmss minimum 0
    no sysopt nodnsalias inbound
    no sysopt nodnsalias outbound
    no sysopt radius ignore-secret
    sysopt connection permit-vpn

    !--- sysopt connection permit-vpn is enabled
    !--- This device is running 7.2(2)



Use these commands in order to enable the correct sysopt command for your device:

  • Cisco PIX 6.x and PIX/ASA 7.0
    pix(config)#sysopt connection permit-ipsec

  • Cisco PIX/ASA 7.1(1) and later
    securityappliance(config)#sysopt connection permit-vpn


Note: If you do not wish to use the sysopt connection command, then you must explicitly permit the required traffic, which is interesting traffic from source to destination, for example, from LAN of remote device to LAN of local device and “UDP port 500” for outside interface of remote device to outside interface of local device, in outside ACL.

Verify the ISAKMP Identity

If the IPsec VPN tunnel has failed within the IKE negotiation, the failure can be due to either the PIX or the inability of its peer to recognize the identity of its peer. When two peers use IKE to establish IPsec security associations, each peer sends its ISAKMP identity to the remote peer. It sends either its IP address or host name dependent upon how each has its ISAKMP identity set. By default, the ISAKMP identity of the PIX Firewall unit is set to the IP address. As a general rule, set the security appliance and the identities of its peers in the same way to avoid an IKE negotiation failure.

In order to set the Phase 2 ID to be sent to the peer, use the isakmp identity command in global configuration mode

crypto isakmp identity address

!--- If the RA or L2L (site-to-site) VPN tunnels connect
!--- with pre-shared key as authentication type

OR

crypto isakmp identity auto

!--- If the RA or L2L (site-to-site) VPN tunnels connect
!--- with ISAKMP negotiation by connection type; IP address for
!--- preshared key or cert DN for certificate authentication.

OR

crypto isakmp identity hostname

!--- Uses the fully-qualified domain name of
!--- the host exchanging ISAKMP identity information (default).
!--- This name comprises the hostname and the domain name.

VPN tunnel fails to come up after moving configuration from PIX to ASA using the PIX/ASA configuration migration tool; these messages appear in the log:

[IKEv1]: Group = x.x.x.x, IP = x.x.x.x, Stale PeerTblEntry found, removing! [IKEv1]: Group = x.x.x.x, IP = x.x.x.x, Removing peer from correlator table failed, no match! [IKEv1]: Group = x.x.x.x, IP = x.x.x.x, construct_ipsec_delete(): No SPI to identify Phase 2 SA! [IKEv1]: Group = x.x.x.x, IP = x.x.x.x, Removing peer from correlator table failed, no match!

This issue happens since PIX by default is set to identify the connection as hostname where the ASA identifies as IP. In order to resolve this issue, use the crypto isakmp identity command in global configuration mode as shown below:

crypto isakmp identity hostname


!--- Use the fully-qualified domain name of
!--- the host exchanging ISAKMP identity information (default).
!--- This name comprises the hostname and the domain name.

When you receive the Received an un-encrypted INVALID_COOKIE error message, issue the crypto isakmp identity addresscommand in order to resolve the issue.

Note: The isakmp identity command was deprecated from the software version 7.2(1). Refer to the Cisco Security Appliance Command Reference, Version 7.2 for more information.

Verify Idle/Session Timeout

If the idle timeout is set to 30 minutes (default), it means that it drops the tunnel after 30 minutes of no traffic passes through it. The VPN client gets disconnected after 30 minutes regardless of the setting of idle timeout and encounters the PEER_DELETE-IKE_DELETE_UNSPECIFIED error.

Configure idle timeout and session timeout as none in order to make the tunnel always up, and so that the tunnel is never dropped even when using third party devices.

PIX/ASA 7.x and later

Enter the vpn-idle-timeout command in group-policy configuration mode or in username configuration mode in order to configure the user timeout period:

hostname(config)#group-policy DfltGrpPolicy attributes
hostname(config-group-policy)#vpn-idle-timeout none

Configure a maximum amount of time for VPN connections with the vpn-session-timeout command in group-policy configuration mode or in username configuration mode:

hostname(config)#group-policy DfltGrpPolicy attributes
hostname(config-group-policy)#vpn-session-timeout none

Note: When you have tunnel-all configured, you do not need to configure idle-timeout because, even if you configure VPN-idle timeout, it will not work because all traffic is going through the tunnel (since tunnel-all is configured). Therefore, the interesting traffic (or even the traffic generated by the PC) will be interesting and will not let Idle-timeout come into action.

Cisco IOS Router

Use the crypto ipsec security-association idle-time command in global configuration mode or crypto map configuration mode in order to configure the IPsec SA idle timer. By default IPsec SA idle timers are disabled.

crypto ipsec security-association idle-time
seconds

Time is in seconds, which the idle timer allows an inactive peer to maintain an SA. Valid values for the seconds argument range from 60 to 86400.

Verify that ACLs are Correct and Binded to Crypto Map

There are two access lists used in a typical IPsec VPN configuration. One access list is used to exempt traffic that is destined for the VPN tunnel from the NAT process. The other access list defines what traffic to encrypt; this includes a crypto ACL in a LAN-to-LAN setup or a split-tunneling ACL in a Remote Access configuration. When these ACLs are incorrectly configured or missing, traffic might only flow in one direction across the VPN tunnel, or it might not be sent across the tunnel at all.

Note: Make sure to bind the crypto ACL with crypto map by using the crypto map match address command in global configuration mode.

Be sure that you have configured all of the access lists necessary to complete your IPsec VPN configuration and that those access lists define the correct traffic. This list contains simple things to check when you suspect that an ACL is the cause of problems with your IPsec VPN.

  • Make sure that your NAT Exemption and crypto ACLs specify the correct traffic.
  • If you have multiple VPN tunnels and multiple crypto ACLs, make sure that those ACLs do not overlap.Note: On VPN concentrator, you might see a log like this:

    Tunnel Rejected: IKE peer does not match remote peer as defined in L2L policy

    In order to avoid this message and in order to bring the tunnel up, make sure that the crypto ACLs do not overlap and the same interesting traffic is not used by any other configured VPN tunnel.

  • Do not use ACLs twice. Even if your NAT Exemption ACL and crypto ACL specify the same traffic, use two different access lists.
  • For remote access configuration, do not use access-list for interesting traffic with the dynamic crypto map. This can cause the VPN client to be unable to connect to the head end device. If you mistakenly configured the crypto ACL for Remote access VPN, you can get the %ASA-3-713042: IKE Initiator unable to find policy: Intf 2 error message.Note: If this is a VPN site-to-site tunnel, make sure to match the access list with the peer. They must be in reverse order on the peer.

    Refer to PIX/ASA 7.x and Cisco VPN Client 4.x with Windows 2003 IAS RADIUS (Against Active Directory) Authentication Configuration Example for a sample configuration that shows how to set up the remote access VPN connection between a Cisco VPN Client and the PIX/ASA.

  • Make sure that your device is configured to use the NAT Exemption ACL. On a router, this means that you use the route-map command. On the PIX or ASA, this means that you use the nat (0) command. A NAT exemption ACL is required for both LAN-to-LAN and Remote Access configurations.
    • Here, an IOS router is configured to exempt traffic that is sent between 192.168.100.0 /24 and 192.168.200.0 /24 or192.168.1.0 /24 from NAT. Traffic destined for anywhere else is subject to NAT overload:
      access-list 110 deny ip 192.168.100.0 0.0.0.255
         192.168.200.0 0.0.0.255
      access-list 110 deny ip 192.168.100.0 0.0.0.255
         192.168.1.0 0.0.0.255
      access-list 110 permit ip 192.168.100.0 0.0.0.255 any

      route-map nonat permit 10
        match ip address 110

      ip nat inside source route-map nonat interface FastEthernet0/0 overload
    • Here, a PIX is configured to exempt traffic that is sent between 192.168.100.0 /24 and 192.168.200.0 /24 or192.168.1.0 /24 from NAT. For example, all other traffic is subject to NAT overload:
      access-list noNAT extended permit ip 192.168.100.0
         255.255.255.0 192.168.200.0 255.255.255.0
      access-list noNAT extended permit ip 192.168.100.0
         255.255.255.0 192.168.1.0 255.255.255.0

      nat (inside) 0 access-list noNAT
      nat (inside) 1 0.0.0.0 0.0.0.0

      global (outside) 1 interface

      Note: NAT exemption ACLs work only with the IP address or IP networks, such as those examples mentioned (access-list noNAT), and must be identical to the crypto map ACLs. The NAT exemption ACLs do not work with the port numbers (for instance, 23, 25, etc.).

      Note: In a VOIP environment, where the voice calls between networks are being communicated through the VPN, the voice calls do not work if the NAT 0 ACLs are not properly configured. Before going deep through VOIP troubleshooting, it is suggested to check the VPN connectivity status because the problem could be with misconfiguration of NAT exempt ACLs.

      Note: You can get the error message as shown if there is misconfiguration in NAT exemption (nat 0) ACLs.

      %PIX-3-305005: No translation group
      found for icmp src outside:192.168.100.41 dst
      inside:192.168.200.253 (type 8, code 0)

      %ASA-3-305005: No translation group found for
      udp src Outside:x.x.x.x/p dst Inside:y.y.y.y/p

      Note:  Incorrect Example:

      access-list noNAT extended permit ip 192.168.100.0
         255.255.255.0 192.168.200.0 255.255.255.0 eq 25


      If NAT exemption (nat 0) does not work, then try to remove it and issue the NAT 0 command in order for it to work.

  • Make sure that your ACLs are not backwards and that they are the right type.
    • Crypto and NAT exemption ACLs for LAN-to-LAN configurations must be written from the perspective of the device on which the ACL is configured. This means that the ACLs must mirror each other. In this example, a LAN-to-LAN tunnel is set up between 192.168.100.0 /24 and 192.168.200.0 /24.common_ipsec_trouble-1.gif

      Router A crypto ACL

      access-list 110 permit ip 192.168.100.0 0.0.0.255
         192.168.200.0 0.0.0.255

      Router B crypto ACL

      access-list 110 permit ip 192.168.200.0 0.0.0.255
         192.168.100.0 0.0.0.255

      Note: Although it is not illustrated here, this same concept applies to the PIX and ASA Security Appliances, as well.

    • In PIX/ASA, split-tunnel ACLs for Remote Access configurations must be standard access lists that permit traffic to the network to which the VPN clients need access. IOS routers can use extended ACL for split-tunnel.Note: In the extended access list, to use ‘any’ at the source in the split tunneling ACL is similar to disable split tunneling. Use only the source networks in the extended ACL for split tunneling.

      Note:  Correct Example:

      access-list 140 permit ip 10.1.0.0 0.0.255.255 10.18.0.0 0.0.255.255

      Note:  Incorrect Example:

      access-list 140 permit ip any 10.18.0.0 0.0.255.255


      • Cisco IOS
        router(config)#access-list 10 permit ip 192.168.100.0
        router(config)#crypto isakmp client configuration group MYGROUP
        router(config-isakmp-group)#acl 10

      • Cisco PIX 6.x
        pix(config)#access-list 10 permit 192.168.100.0
           255.255.255.0
        pix(config)#vpngroup MYGROUP split-tunnel 10

      • Cisco PIX/ASA 7.x
        securityappliance(config)#access-list 10 standard
           permit 192.168.100.0 255.255.255.0
        securityappliance(config)#group-policy MYPOLICY internal
        securityappliance(config)#group-policy MYPOLICY attributes
        securityappliance(config-group-policy)#split-tunnel-policy
           tunnelspecified
        securityappliance(config-group-policy)#split-tunnel-network-list
           value 10


This error occurs in ASA 8.3 if the NO NAT ACL is misconfigured or is not configured on ASA:

%ASA-5-305013: Asymmetric NAT rules matched for forward and reverse flows; Connection for udp src outside: x.x.x.x/xxxxx dst inside:x.x.x.x/xx denied due to NAT reverse path failure

In order to resolve this issue, verify the configuration is correct or reconfigure if the settings are incorrect.

NAT exemption configuration in ASA version 8.3 for site-to-site VPN tunnel:


A site-to-site VPN has to be established between HOASA and BOASA with both ASAs using version 8.3. The NAT exemption configuration on HOASA looks similar to this:

object network obj-local
subnet 192.168.100.0 255.255.255.0
object network obj-remote
subnet 192.168.200.0 255.255.255.0
nat (inside,outside) 1 source static obj-local obj-local destination static obj-remote objremote

Verify the ISAKMP Policies

If the IPsec tunnel is not UP, check that the ISAKMP policies match with the remote peers. This ISAKMP policy is applicable to both the Site-to-Site (L2L) and Remote Access IPsec VPN.

If the Cisco VPN Clients or the Site-to-Site VPN are not able establish the tunnel with the remote-end device, check that the two peers contain the same encryption, hash, authentication, and Diffie-Hellman parameter values and when the remote peer policy specifies a lifetime less than or equal to the lifetime in the policy that the initiator sent. If the lifetimes are not identical, the security appliance uses the shorter lifetime. If no acceptable match exists, ISAKMP refuses negotiation, and the SA is not established.

"Error: Unable to remove Peer TblEntry, Removing peer from peer table
failed, no match!"

Here is the detailed log message:

4|Mar 24 2010 10:21:50|713903: IP = X.X.X.X, Error: Unable to remove PeerTblEntry
3|Mar 24 2010 10:21:50|713902: IP = X.X.X.X, Removing peer from peer table failed,
no match!
3|Mar 24 2010 10:21:50|713048: IP = X.X.X.X, Error processing payload: Payload ID: 1
4|Mar 24 2010 10:21:49|713903: IP = X.X.X.X, Information Exchange processing failed
5|Mar 24 2010 10:21:49|713904: IP = X.X.X.X, Received an un-encrypted
NO_PROPOSAL_CHOSEN notify message, dropping

This message usually appears due to mismatched ISAKMP policies or a missing NAT 0 statement.

In addition, this message appears:

Error Message    %PIX|ASA-6-713219: Queueing KEY-ACQUIRE messages to be processed when
P1 SA is complete.

This message indicates that Phase 2 messages are being enqueued after Phase 1 completes. This error message might be due to one of these reasons:

  • Mismatch in phase on any of the peers
  • ACL is blocking the peers from completing phase 1

This message usually comes after the Removing peer from peer table failed, no match! error message.

If the Cisco VPN Client is unable to connect the head-end device, the problem can be the mismatch of ISAKMP Policy. The head-end device must match with one of the IKE Proposals of the Cisco VPN Client.

Note: For the ISAKMP policy and IPsec Transform-set that is used on the PIX/ASA, the Cisco VPN client cannot use a policy with a combination of DES and SHA. If you use DES, you need to use MD5 for the hash algorithm, or you can use the other combinations, 3DES with SHA and 3DES with MD5.

Verify that Routing is Correct

Routing is a critical part of almost every IPsec VPN deployment. Be certain that your encryption devices such as Routers and PIX or ASA Security Appliances have the proper routing information to send traffic over your VPN tunnel. Moreover, if other routers exist behind your gateway device, be sure that those routers know how to reach the tunnel and what networks are on the other side.

One key component of routing in a VPN deployment is Reverse Route Injection (RRI). RRI places dynamic entries for remote networks or VPN clients in the routing table of a VPN gateway. These routes are useful to the device on which they are installed, as well as to other devices in the network because routes installed by RRI can be redistributed through a routing protocol such as EIGRP or OSPF.

  • In a LAN-to-LAN configuration, it is important for each endpoint to have a route or routes to the networks for which it is supposed to encrypt traffic. In this example, Router A must have routes to the networks behind Router B through10.89.129.2. Router B must have a similar route to 192.168.100.0 /24:common_ipsec_trouble-3.gif
    • The first way to ensure that each router knows the appropriate route(s) is to configure static routes for each destination network. For example, Router A can have these route statements configured:
      ip route 0.0.0.0 0.0.0.0 172.22.1.1
      ip route 192.168.200.0 255.255.255.0 10.89.129.2
      ip route 192.168.210.0 255.255.255.0 10.89.129.2
      ip route 192.168.220.0 255.255.255.0 10.89.129.2
      ip route 192.168.230.0 255.255.255.0 10.89.129.2

      If Router A was replaced with a PIX or ASA, the configuration can look like this:

      route outside 0.0.0.0 0.0.0.0 172.22.1.1
      route outside 192.168.200.0 255.255.255.0 10.89.129.2
      route outside 192.168.200.0 255.255.255.0 10.89.129.2
      route outside 192.168.200.0 255.255.255.0 10.89.129.2
      route outside 192.168.200.0 255.255.255.0 10.89.129.2
    • If a large number of networks exists behind each endpoint, the configuration of static routes becomes difficult to maintain. Instead, it is recommended that you use Reverse Route Injection, as described. RRI places into the routing table routes for all of the remote networks listed in the crypto ACL. For example, the crypto ACL and crypto map of Router A can look like this:
      access-list 110 permit ip 192.168.100.0 0.0.0.255
         192.168.200.0 0.0.0.255
      access-list 110 permit ip 192.168.100.0 0.0.0.255
         192.168.210.0 0.0.0.255
      access-list 110 permit ip 192.168.100.0 0.0.0.255
         192.168.220.0 0.0.0.255
      access-list 110 permit ip 192.168.100.0 0.0.0.255
         192.168.230.0 0.0.0.255

      crypto map myMAP 10 ipsec-isakmp
       set peer 10.89.129.2
       reverse-route
       set transform-set mySET
       match address 110

      If Router A was replaced by a PIX or ASA, the configuration can look like this:

      access-list cryptoACL extended permit ip 192.168.100.0
         255.255.255.0 192.168.200.0 255.255.255.0
      access-list cryptoACL extended permit ip 192.168.100.0
         255.255.255.0 192.168.210.0 255.255.255.0
      access-list cryptoACL extended permit ip 192.168.100.0
         255.255.255.0 192.168.220.0 255.255.255.0
      access-list cryptoACL extended permit ip 192.168.100.0
         255.255.255.0 192.168.230.0 255.255.255.0

      crypto map myMAP 10 match address cryptoACL
      crypto map myMAP 10 set peer 10.89.129.2
      crypto map myMAP 10 set transform-set mySET
      crypto map mymap 10 set reverse-route

  • In a Remote Access configuration, routing changes are not always necessary. Yet, if other routers exist behind the VPN gateway router or Security Appliance, those routers need to learn the path to the VPN clients somehow. In this example, suppose that the VPN clients are given addresses in the range of 10.0.0.0 /24 when they connect.common_ipsec_trouble-4.gif

    If no routing protocol is in use between the gateway and the other router(s), static routes can be used on routers such as Router 2:

    ip route 10.0.0.0 255.255.255.0 192.168.100.1

    If a routing protocol such as EIGRP or OSPF is in use between the gateway and other routers, it is recommended that Reverse Route Injection be used as described. RRI automatically adds routes for the VPN client to the routing table of the gateway. These routes can then be distributed to the other routers in the network.

    • Cisco IOS Router:
      crypto dynamic-map dynMAP 10
       set transform-set mySET
       reverse-route

      crypto map myMAP 60000 ipsec-isakmp dynamic dynMAP
    • Cisco PIX or ASA Security Appliance:
      crypto dynamic-map dynMAP 10 set transform-set mySET
      crypto dynamic-map dynMAP 10 set reverse-route

      crypto map myMAP 60000 ipsec-isakmp dynamic dynMAP

Note: The routing issue occurs if the pool of IP addresses assigned for the VPN clients are overlaps with internal networks of the head-end device. For further information, refer to the Overlapping Private Networks section .

Verify that Transform-Set is Correct

Make sure that the IPsec encryption and hash algorithms to be used by the transform set on the both ends are the same. Refer to the Command reference section of the Cisco Security Appliance configuration guide for more information.

Note: For the ISAKMP policy and IPsec Transform-set that is used on the PIX/ASA, the Cisco VPN client cannot use a policy with a combination of DES and SHA. If you use DES, you need to use MD5 for the hash algorithm, or you can use the other combinations, 3DES with SHA and 3DES with MD5.

Verify Crypto Map Sequence Numbers and Name and also that the Crypto map is applied in the right interface in which the IPsec tunnel start/end

If static and dynamic peers are configured on the same crypto map, the order of the crypto map entries is very important. The sequence number of the dynamic crypto map entry must be higher than all of the other static crypto map entries. If the static entries are numbered higher than the dynamic entry, connections with those peers fail and the debugs as shown appears.

IKEv1]: Group = x.x.x.x, IP = x.x.x.x, QM FSM error (P2 struct &0x49ba5a0, mess id 0xcd600011)!
[IKEv1]: Group = x.x.x.x, IP = x.x.x.x, Removing peer from correlator table failed, no match!

Note: Only one Dynamic Crypto-map is allowed for each interface in the Security Appliance.

Here is an example of a properly numbered crypto map that contains a static entry and a dynamic entry. Note that the dynamic entry has the highest sequence number and room has been left to add additional static entries:

crypto dynamic-map cisco 20 set transform-set myset
crypto map mymap 10 match address 100
crypto map mymap 10 set peer 172.16.77.10
crypto map mymap 10 set transform-set myset
crypto map mymap interface outside
crypto map mymap 60000 ipsec-isakmp dynamic cisco

Note: Crypto map names are case-sensitive.

Note: This error message can also be seen when the dynamic crypto man sequence is not correct which causes the peer to hit the wrong crypto map, and also by a mismatched crypto access list that defines the interesting traffic: %ASA-3-713042: IKE Initiator unable to find policy:

In the scenarios where multiple VPN tunnels to be terminated in the same interface, we need to create crypto map with same name (only one crypto map is allowed per interface) but with a different sequence number. This holds true for the router, PIX, and ASA.

Refer to Configuring IPsec Between Hub and Remote PIXes with VPN Client and Extended Authentication for more information in order to learn more about the hub PIX configuration for the same crypto map with the different sequence numbers on the same interface. Similarly, refer to PIX/ASA 7.X: Add a New Tunnel or Remote Access to an Existing L2L VPN for more information in order to learn more about the crypto map configuration for both L2L and Remote Access VPN scenarios.

Verify the Peer IP Address is Correct

For a PIX/ASA Security Appliance 7.x LAN-to-LAN (L2L) IPsec VPN configuration, you must specify the <name> of the tunnel group as theRemote peer IP Address(remote tunnel end) in the tunnel-group <name> type ipsec-l2l command for the creation and management of the database of connection-specific records for IPsec. The peer IP address must match in tunnel group name and the Crypto map set address commands. While you configure the VPN with ASDM, it generated the tunnel group name automatically with right peer IP address. If the peer IP Address is not configured properly, the logs can contain this message, which can be resolved by proper configuration of the Peer IP Address.

[IKEv1]: Group = DefaultL2LGroup, IP = x.x.x.x,
ERROR, had problems decrypting packet, probably due to mismatched pre-shared key. Aborting

In PIX 6.x LAN-to-LAN (L2L) IPsec VPN configuration, the Peer IP address (remote tunnel end) must match isakmp key addressand the set peer command in crypto map for a successful IPsec VPN connection.

When the peer IP address has not been configured properly on the ASA crypto configuration, the ASA is not able to establish the VPN tunnel and hangs in the MM_WAIT_MSG4 stage only. In order to resolve this issue, correct the peer IP address in the configuration.

Here is the output of the show crypto isakmp sa command when the VPN tunnel hangs at in the MM_WAIT_MSG4 state.

hostname#show crypto isakmp sa

1   IKE Peer: XX.XX.XX.XX
    Type    : L2L             Role    : initiator
    Rekey   : no              State   : MM_WAIT_MSG4

Verify the Tunnel Group and Group Names

%PIX|ASA-3-713206: Tunnel Rejected: Conflicting protocols specified by
tunnel-group and group-policy

The message appears when a tunnel is dropped because the allowed tunnel specified in the group policy is different than the allowed tunnel in the tunnel-group configuration.

group-policy hf_group_policy attributes
  vpn-tunnel-protocol l2tp-ipsec

username hfremote attributes
  vpn-tunnel-protocol l2tp-ipsec

Both lines should read:
  vpn-tunnel-protocol ipsec l2tp-ipsec

Enable IPSec In Default Group policy to the already Existing Protocols In Default Group Policy .

group-policy DfltGrpPolicy attributes
   vpn-tunnel-protocol L2TP-IPSec IPSec webvpn

Disable XAUTH for L2L Peers

If a LAN-to-LAN tunnel and a Remote Access VPN tunnel are configured on the same crypto map, the LAN-to-LAN peer is prompted for XAUTH information, and the LAN-to-LAN tunnel fails with “ CONF_XAUTH ” in the output of the show crypto isakmp sa command.

Here is an example of the SA output:

Router#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst             src             state          conn-id  slot  status
X.X.X.X         Y.Y.Y.Y         CONF_XAUTH       10223    0   ACTIVE
X.X.X.X         Z.Z.Z.Z         CONF_XAUTH       10197    0   ACTIVE

Note: This issue only applies to Cisco IOS and PIX 6.x. whereas PIX/ASA 7.x is not affected by this issue since it uses tunnel-groups.

Use the no-xauth keyword when you enter the isakmp key, so the device does not prompt the peer for XAUTH information (username and password). This keyword disables XAUTH for static IPsec peers. Enter a command similar to this on the device that has both L2L and RA VPN configured on the same crypto map:

router(config)#crypto isakmp key cisco123 address
   172.22.1.164 no-xauth

In the scenario where the PIX/ASA 7.x acts as the Easy VPN Server, the easy VPN client is unable to connect to head end because of the Xauth issue. Disable the user authentication in the PIX/ASA in order to resolve the issue as shown:

ASA(config)#tunnel-group example-group type ipsec-ra
ASA(config)#tunnel-group example-group ipsec-attributes
ASA(config-tunnel-ipsec)#isakmp ikev1-user-authentication none

See the Miscellaneous section of this document in order to know more about the isakmp ikev1-user-authentication command.

VPN Pool Getting Exhausted

When the range of IP addresses assigned to the VPN pool are not sufficient, you can extend the availability of IP addresses in two ways:

  1. Remove the existing range, and define the new range. Here is an example:
    CiscoASA(config)#no ip local pool testvpnpool 10.76.41.1-10.76.41.254
    CiscoASA(config)#ip local pool testvpnpool 10.76.41.1-10.76.42.254

  2. When discontiguous subnets are to be added to the VPN pool, you can define two separate VPN pools and then specify them in order under the “tunnel-group attributes“. Here is an example:
    CiscoASA(config)#ip local pool testvpnpoolAB 10.76.41.1-10.76.42.254
    CiscoASA(config)#ip local pool testvpnpoolCD 10.76.45.1-10.76.45.254
    CiscoASA(config)#tunnel-group test type remote-access
    CiscoASA(config)#tunnel-group test general-attributes
    CiscoASA(config-tunnel-general)#address-pool (inside) testvpnpoolAB testvpnpoolCD
    CiscoASA(config-tunnel-general)#exit


The order in which you specify the pools is very important because the ASA allocates addresses from these pools in the order in which the pools appear in this command.

Note: The address-pools settings in the group-policy address-pools command always override the local pool settings in the tunnel-group address-pool command.

Issues with Latency for VPN Client Traffic

When there are latency issues over a VPN connection, verify the following in order to resolve this:

  1. Verify if the MSS of the packet can be reduced further.
  2. If IPsec/tcp is used instead of IPsec/udp, then configure preserve-vpn-flow.
  3. Re-load the Cisco ASA.

VPN Clients are Unable to Connect with ASA/PIX

Problem

Cisco VPN clients are unable to authenticate when the X-auth is used with the Radius server.

Solution

The problem can be that the xauth times out. Increase the timeout value for AAA server in order to resolve this issue.

For example:

Hostname(config)#aaa-server test protocol radius
hostname(config-aaa-server-group)#aaa-server test host 10.2.3.4
hostname(config-aaa-server-host)#timeout 10

Problem

Cisco VPN clients are unable to authenticate when the X-auth is used with the Radius server.

Solution

Initially, make sure that the authentication works properly. To narrow down the problem, first verify the authentication with local database on ASA.

tunnel-group tggroup general-attributes
              authentication-server-group none
              authentication-server-group LOCAL
        exit

If this works fine, then the problem should be related to Radius server configuration.

Verify the connectivity of the Radius server from the ASA. If the ping works without any problem, then check the Radius-related configuration on ASA and database configuration on the Radius server.

You could use the debug radius command to troubleshoot radius related issues. For sample debug radius output, refer to thisSample Output .

Note: Before you use the debug command on the ASA, refer to this documentation: Warning message .

VPN Client Drops Connection Frequently on First Attempt or “Security VPN Connection terminated by peer. Reason 433.” or “Secure VPN Connection terminated by Peer Reason 433:(Reason Not Specified by Peer)”

Problem

Cisco VPN client users might receive this error when they attempt the connection with the head end VPN device.

VPN client drops connection frequently on first attempt” or “Security VPN Connection terminated by peer. Reason 433.” or “Secure VPN Connection terminated by Peer Reason 433:(Reason Not Specified by Peer)” or “Attempted to assign network or broadcast IP address, removing (x.x.x.x) from pool

Solution 1

The problem might be with the IP pool assignment either through ASA/PIX, Radius server, DHCP server or through Radius server acting as DHCP server. Use the debug crypto command in order to verify that the netmask and IP addresses are correct. Also, verify that the pool does not include the network address and the broadcast address. Radius servers must be able to assign the proper IP addresses to the clients.

Solution 2

This issue also occurs due to the failure of extended authentication. You must check the AAA server to troubleshoot this error. Checking the server authentication password on Server and client and reloading the AAA server might resolve this issue.

Solution 3

Another workaround for this issue is to disable the threat detection feature. At times when there are multiple re-transmissions for different incomplete Security Associations (SAs), the ASA with the threat-detection feature enabled thinks that a scanning attack is occuring and the VPN ports are marked as the main offender. Try to disable the threat-detection feature as this can cause a lot of overhead on the processing of ASA. Use these commands in order to disable the threat detection:

no threat-detection basic-threat
no threat-detection scanning-threat shun
no threat-detection statistics
no threat-detection rate

For more information about this feature, refer to Threat Detection.

Note: This can be used as a workaround to verify if this fixes the actual problem. Make sure that disabling the threat detection on the Cisco ASA actually compromises several security features such as mitigating the Scanning Attempts, DoS with Invalid SPI, packets that fail Application Inspection and Incomplete Sessions.

Solution 4

This issue also occurs when a transform set is not properly configured. A proper configuration of the transform set resolves the issue.

Remote Access and EZVPN Users Connect to VPN but Cannot Access External Resources

Problem

Remote access users have no Internet connectivity once they connect to the VPN.

Remote access users cannot access resources located behind other VPNs on the same device.

Remote access users can access only the local network.

Solutions

Try these solutions in order to resolve this issue:

Unable to Access the Servers in DMZ

Once the VPN client is established the IPsec tunnel with the VPN head-end device (PIX/ASA/IOS Router), the VPN client users are able to access the INSIDE network (10.10.10.0/24) resources, but they are unable to access the DMZ network (10.1.1.0/24).

Diagram


Check that the Split Tunnel, NO NAT configuration is added in the head-end device to access the resources in the DMZ network.

Example

ASA/PIX
ciscoasa#show running-config


!--- Split tunnel for the inside network access

access-list vpnusers_spitTunnelAcl permit ip 10.10.10.0 255.255.0.0 any


!--- Split tunnel for the DMZ network access

access-list vpnusers_spitTunnelAcl permit ip 10.1.1.0 255.255.0.0 any


!--- Create a pool of addresses from which IP addresses are assigned
!--- dynamically to the remote VPN Clients.

ip local pool vpnclient 192.168.1.1-192.168.1.5


!--- This access list is used for a nat zero command that prevents
!--- traffic which matches the access list from undergoing NAT.

!--- No Nat for the DMZ network.


access-list nonat-dmz permit ip  10.1.1.0 255.255.255.0  192.168.1.0 255.255.255.0


!--- No Nat for the Inside network.

access-list nonat-in permit ip  10.10.10.0 255.255.255.0  192.168.1.0 255.255.255.0


!--- NAT 0 prevents NAT for networks specified in the ACL nonat

.
nat (DMZ) 0 access-list nonat-dmz
nat (inside) 0 access-list nonat-in

ASA version 8.3 configuration:

This configuration shows how to configure the NAT exemption for the DMZ network in order to enable the VPN users to access the DMZ network:

object network obj-dmz
subnet 10.1.1.0 255.255.255.0
object network obj-vpnpool
subnet 192.168.1.0 255.255.255.0
nat (inside,dmz) 1 source static obj-dmz obj-dmz destination static obj-vpnpool obj-vpnpool

After you add a new entry for the NAT configuration, clear the NAT translation.

Clear xlate
Clear local

Verify:

If the tunnel has been established, go to the Cisco VPN Client and choose Status > Route Details to check that the secured routes are shown for both the DMZ and INSIDE networks.


Refer to PIX/ASA 7.x: Mail Server Access on the DMZ Configuration Example for more information on how to set up the PIX Firewall for access to a mail server located on the Demilitarized Zone (DMZ) network.

Refer to PIX/ASA 7.x: Add a New Tunnel or Remote Access to an Existing L2L VPN in order to provide the steps required to add a new VPN tunnel or a remote access VPN to a L2L VPN configuration that already exists.

Refer to PIX/ASA 7.x: Allow Split Tunneling for VPN Clients on the ASA Configuration Example in order to provide step-by-step instructions on how to allow VPN Clients access to the Internet while they are tunneled into a Cisco Adaptive Security Appliance (ASA) 5500 Series Security Appliance.

Refer to PIX/ASA 7.x and Cisco VPN Client 4.x with Windows 2003 IAS RADIUS (Against Active Directory) Authentication Configuration Example for more information on how to set up the remote access VPN connection between a Cisco VPN Client (4.x for Windows) and the PIX 500 Series Security Appliance 7.x.

VPN Clients Unable to Resolve DNS

After the tunnel has been established, if the VPN Clients are unable to resolve the DNS, the problem can be the DNS Server configuration in the head-end device (ASA/PIX). Also check the connectivity between the VPN Clients and the DNS Server. The DNS Server configuration must be configured under the group policy and applied under the the group policy in the tunnel-group general attributes; for example:


!--- Create the group policy named vpn3000 and
!--- specify the DNS server IP address(172.16.1.1)
!--- and the domain name(cisco.com) in the group policy.

group-policy vpn3000 internal
group-policy vpn3000 attributes
 dns-server value 172.16.1.1
 default-domain value cisco.com


!--- Associate the group policy(vpn3000) to the tunnel group
!--- using the default-group-policy.

tunnel-group vpn3000 general-attributes
 default-group-policy vpn3000

VPN clients unable to connect internal servers by name

The VPN client is unable to ping the hosts or servers of the remote or head end internal network by name. You need to enable the split-dns configure on ASA in order to resolve this issue.

Split-Tunnel—Unable to access Internet or excluded networks

Split tunneling lets remote-access IPsec clients conditionally direct packets over the IPsec tunnel in encrypted form or direct packets to a network interface in cleartext form, decrypted, where they are then routed to a final destination. Split-tunneling is disabled by default, which is tunnelall traffic.

split-tunnel-policy {tunnelall | tunnelspecified | excludespecified}

Note: The option excludespecified is supported only for Cisco VPN clients, not EZVPN clients.

ciscoasa(config-group-policy)#split-tunnel-policy excludespecified

Refer to these documents for detailed configuration examples of split-tunneling:

Hairpinning

This feature is useful for VPN traffic that enters an interface but is then routed out of that same interface. For example, if you have a hub and spoke VPN network, where the security appliance is the hub and remote VPN networks are spokes, in order for one spoke to communicate with another spoke, traffic must go into the security appliance and then out again to the other spoke.

Use the same-security-traffic configuration to allow traffic to enter and exit the same interface.

securityappliance(config)#same-security-traffic permit intra-interface

Local LAN Access

Remote access users connect to the VPN and are able to connect to local network only.

For a more detailed configuration example, refer to PIX/ASA 7.x: Allow local LAN access for VPN clients.

Overlapping Private Networks

Problem

If you are unable to access the internal network after the tunnel establishment, check the IP address assigned to the VPN client that overlaps with the internal network behind the head-end device.

Solution

Always make sure that the IP addresses in the pool to be assigned for the VPN clients, the internal network of the head-end device and the VPN Client internal network must be in different networks. You can assign the same major network with different subnets, but sometimes the routing issues occur.

For further examples, see the Diagram and Example of the Unable to Access the Servers in DMZ section.

Unable to Connect More Than Three VPN Client Users

Problem

Only three VPN clients can connect to ASA/PIX; connection for the fourth client fails. Upon failure, this error message is displayed:

Secure VPN Connection terminated locally by the client.
	 Reason 413: User Authentication failed.
tunnel rejected; the maximum tunnel count has been reached

Solutions

In most cases, this issue is related to a simultaneous login setting within group policy and the maximum session-limit.

Try these solutions in order to resolve this issue:

For more information, refer to the Configuring Group Policies section of Selected ASDM VPN Configuration Procedures for the Cisco ASA 5500 Series, Version 5.2.

Configure Simultaneous Logins

If the Inherit check box in ASDM is checked, only the default number of simultaneous logins is allowed for the user. The default value for simultaneous logins is three.

In order to resolve this issue, increase the value for simultaneous logins.

  1. Launch ASDM and then navigate to Configuration > VPN > Group Policy.common_ipsec_trouble-5.gif
  2. Choose the appropriate Group and click the Edit button.common_ipsec_trouble-6.gif
  3. Once in the General tab, undo the Inherit check box for Simultaneous Logins under Connection Settings. Choose an appropriate value in the field.common_ipsec_trouble-7.gif

    Note:  The minimum value for this field is 0, which disables login and prevents user access.

    Note: When you log in using the same user account from a different PC, the current session (the connection established from another PC using the same user account) is terminated, and the new session is established. This is the default behaviour and is independent to VPN simultaneous logins.

Configure the ASA/PIX with CLI

Complete these steps in order to configure the desired number of simultaneous logins. In this example, 20 was chosen as the desired value.

ciscoasa(config)#group-policy Bryan attributes
ciscoasa(config-group-policy)#vpn-simultaneous-logins 20

In order to learn more about this command, refer to Cisco Security Appliance Command Reference, Version 7.2.

Use the vpn-sessiondb max-session-limit command in global configuration mode in order to limit VPN sessions to a lower value than the security appliance allows. Use the no version of this command in order to remove the session limit. Use the command again in order to overwrite the current setting.

vpn-sessiondb max-session-limit {session-limit}

This example shows how to set a maximum VPN session limit of 450:

hostname#vpn-sessiondb max-session-limit 450

Configure Concentrator

Error Message

20932 10/26/2007 14:37:45.430 SEV=3 AUTH/5 RPT=1863 10.19.187.229
Authentication rejected: Reason = Simultaneous logins exceeded for user
handle = 623, server = (none), user = 10.19.187.229, domain = <not
specified>

Solution

Complete these steps in order to configure the desired number of simultaneous logins. You can also try to set the Simultaneous Logins to 5 for this SA:

Choose Configuration > User Management > Groups > Modify 10.19.187.229 > General > Simultaneous Logins, and change the number of logins to 5.

Unable to Initiate the Session or an Application and Slow Transfer after the Tunnel Establishment

Problem

After the IPsec tunnel establishment, the application or the session does not initiate across the tunnel.

Solutions

Use the ping command to check the network or find whether the application server is reachable from your network. It can be a problem with the maximum segment size (MSS) for transient packets that traverse a router or PIX/ASA device, specifically TCP segments with the SYN bit set.

Cisco IOS Router—Change the MSS Value in the Outside Interface (Tunnel End Interface) of the Router

Run these commands in order to change the MSS value in the outside interface (tunnel end interface) of the router:

Router>enable
Router#configure terminal
Router(config)#interface ethernet0/1
Router(config-if)#ip tcp adjust-mss 1300
Router(config-if)#end

These messages show the debug output for TCP MSS:

Router#debug ip tcp transactions

Sep 5 18:42:46.247: TCP0: state was LISTEN -> SYNRCVD [23 -> 10.0.1.1(38437)]
Sep 5 18:42:46.247: TCP: tcb 32290C0 connection to 10.0.1.1:38437, peer MSS 1300, MSS is
1300
Sep 5 18:42:46.247: TCP: sending SYN, seq 580539401, ack 6015751
Sep 5 18:42:46.247: TCP0: Connection to 10.0.1.1:38437, advertising MSS 1300
Sep 5 18:42:46.251: TCP0: state was SYNRCVD -> ESTAB [23 -> 10.0.1.1(38437)]

The MSS gets adjusted to 1300 on the router as configured.

For more information, refer to PIX/ASA 7.x and IOS: VPN Fragmentation.

PIX/ASA 7.X—Refer to PIX/ASA Documentation

There is an inability to access the Internet properly or slow transfer through the tunnel because it gives the MTU size error message and MSS issues. Refer to these documents in order to resolve the issue:

Unable to Initiate VPN Tunnel from ASA/PIX

Problem

You are unable to initiate the VPN tunnel from ASA/PIX interface, and after the tunnel establishment, the remote end/VPN Client is unable to ping the inside interface of ASA/PIX on the VPN tunnel. For example, the pn client can be unable to initiate a SSH or HTTP connection to ASA’s inside interface over VPN tunnel.

Solution

The inside interface of the PIX cannot be pinged from the other end of the tunnel unless the management-access command is configured in the global configuration mode.

PIX-02(config)#management-access inside

PIX-02(config)#show management-access
management-access inside

Note: This command also helps in initiating a ssh or http connection to inside interface of ASA through a VPN tunnel.

Note: This information holds true for DMZ interface as well. For example, if you want to ping the DMZ interface of PIX/ASA or want to initiate a tunnel from DMZ interface, then the management-access DMZ command is required.

PIX-02(config)#management-access DMZ

Note: If the VPN client is unable to connect, then make sure ESP and UDP ports are open, however if those ports are not open then try to connect on TCP 10000 with the selection of this port under the VPN client connection entry. Right click modify > transport tab > IPsec over TCP. Refer to PIX/ASA 7.x to Support IPsec over TCP on any Port Configuration Example for more information on IPsec over TCP.

Unable to Pass Traffic Across VPN Tunnel

Problem

You are unable to pass traffic across a VPN tunnel.

Solution

This issue occurs due to the problem described in Cisco bug ID CSCtb53186 (registered customers only) . In order to resolve this issue, reload the ASA. Refer to the bug for more information.

This issue might also occur when the ESP packets are blocked. In order to resolve this issue, reconfiguring the VPN tunnel.

This issue might occur when data is not encrypted, but only decrypted over the VPN tunnel as shown in this output:

ASA# sh crypto ipsec sa peer x.x.x.x
peer address: y.y.y.y
    Crypto map tag: IPSec_map, seq num: 37, local addr: x.x.x.x
      access-list test permit ip host xx.xx.xx.xx host yy.yy.yy.yy
      local ident (addr/mask/prot/port): (xx.xx.xx.xx/255.255.255.255/0/0)
      remote ident (addr/mask/prot/port): (yy.yy.yy.yy/255.255.255.255/0/0)
      current_peer: y.y.y.y

      #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0
      #pkts decaps: 393, #pkts decrypt: 393, #pkts verify: 393
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 0, #pkts comp failed: 0, #pkts decomp failed: 0
      #pre-frag successes: 0, #pre-frag failures: 0, #fragments created: 0
      #PMTUs sent: 0, #PMTUs rcvd: 0, #decapsulated frgs needing reassembly: 0
      #send errors: 0, #recv errors: 0

In order to resolve this issue, check the following:

  1. If the crypto access-lists match with the remote site, and that NAT 0 access-lists are correct.
  2. If routing is correct and traffic does hit outside interface passing through inside. The sample output shows that decryption is done, but encryption does not occur.
  3. If the sysopt permit connection-vpn command has been configured on the ASA. If not configured, configure this command because it allows the ASA to exempt the encrypted/VPN traffic from interface ACL checking.

Configuring Backup peer for vpn tunnel on same crypto map

Problem

You want to use multiple backup peers for a single vpn tunnel.

Solution

Configuring multiple peers is equivalent to providing a fallback list. For each tunnel, the security appliance attempts to negotiate with the first peer in the list.

If that peer does not respond, the security appliance works its way down the list until either a peer responds or there are no more peers in the list.

The ASA should have a crypto map already configured as the primary peer. The secondary peer could be added after the primary one.

This example configuration shows the primary peer as X.X.X.X and backup peer as Y.Y.Y.Y:

ASA(config)#crypto map mymap 10 set peer X.X.X.X Y.Y.Y.Y

For more information, refer to the Crypto map set peer section in the Cisco Security Appliance Command Reference, Version 8.0.

Disable/Restart VPN Tunnel

Problem

In order to temporarily disable the VPN tunnel and restart the service, complete the procedure described in this section.

Solution

Use the crypto map interface command in global configuration mode to remove a previously defined crypto map set to an interface. Use the no form of this command in order to remove the crypto map set from the interface.

hostname(config)#no crypto map map-name interface interface-name

This command removes a crypto map set to any active security appliance interface and make the IPsec VPN tunnel inactive in that interface.

To restart the IPsec tunnel on an interface, you must assign a crypto map set to an interface before that interface can provide IPsec services.

hostname(config)#crypto map map-name interface interface-name

Some Tunnels not Encrypted

Problem

When a huge number of tunnels are configured on the VPN gateway, some tunnels do not pass traffic. The ASA does not receive encrypted packets for those tunnels.

Solution

This issue occurs because the ASA fails to pass the encrypted packets through the tunnels. Duplicate encryption rules are created in the ASP table. This is a known issue and bug ID CSCtb53186 (registered customers only) has been filed to address this problem. In order to resolve this issue, either reload the ASA or upgrade the software to a version in which this bug is fixed.

Error:- %ASA-5-713904: Group = DefaultRAGroup, IP = x.x.x.x, Client is using an unsupported Transaction Mode v2 version.Tunnel terminated.

Problem

The %ASA-5-713904: Group = DefaultRAGroup, IP = 99.246.144.186, Client is using an unsupported Transaction Mode v2 version.Tunnel terminated error message appears.

Solution

The reason for the Transaction Mode v2 error message is that ASA supports only IKE Mode Config V6 and not the old V2 mode version. Use the IKE Mode Config V6 version in order to resolve this error.

Error:- %ASA-6-722036: Group client-group User xxxx IP x.x.x.x Transmitting large packet 1220 (threshold 1206)

Problem

The %ASA-6-722036: Group < client-group > User < xxxx > IP < x.x.x.x> Transmitting large packet 1220 (threshold 1206) error message appears in the logs of ASA. What does this log means and how this can be resolved?

Solution

This log message states that a large packet was sent to the client. The source of the packet is not aware of the MTU of the client. This can also be due to compression of non-compressible data. The workaround is to turn off the SVC compression with the svc compression none command, which resolves the issue.

Error: The authentication-server-group none command has been deprecated

Problem

If you transfer the VPN configuration from the PIX/ASA that runs Version 7.0.x to the another security appliance that runs 7.2.x, you receive this error message:

ERROR: The authentication-server-group none command has been deprecated.
The "isakmp ikev1-user-authentication none" command in the ipsec-attributes should be used
instead.

Solution

The command authentication-server-group is no longer supported in 7.2(1) and later. This command was deprecated and moved to tunnel-group general-attributes configuration mode.

Refer to the isakmp ikev1-user-authentication section of the command reference for more information about this command.

Error Message when QoS is Enabled in one End of the VPN Tunnel

Problem

If you enabled QoS in one end of the VPN Tunnel, you might receive this error message:

IPSEC: Received an ESP packet (SPI= 0xDB6E5A60, sequence number= 0x7F9F) from
10.18.7.11 (user= ghufhi) to 172.16.29.23 that failed anti-replay checking

Solution

This message is normally caused when one end of the tunnel is doing QoS. This happens when a packet is detected as being out of order. You can disable QoS to stop this but it can be ignored as long as traffic is able to traverse the tunnel.

WARNING: crypto map entry will be incomplete

Problem

When you run the crypto map mymap 20 ipsec-isakmp command, you might receive this error:

WARNING: crypto map entry will be incomplete

For example:

ciscoasa(config)#crypto map mymap 20 ipsec-isakmp
WARNING: crypto map entry will be incomplete

Solution

This is a usual warning when you define a new crypto map, a reminder that parameters such as access-list (match address), transform set and peer address must be configured before it can work. It is also normal that the first line you type in order to define the crypto map does not show in the configuration.

Error:- %ASA-4-400024: IDS:2151 Large ICMP packet from to on interface outside

Problem

Unable to pass large ping packet across the vpn tunnel. When we try to pass large ping packets we get the error %ASA-4-400024: IDS:2151 Large ICMP packet from to on interface outside

Solution

Disable the signatures 2150 and 2151 in order to resolve this issue.Once the signatures are disabled ping works fine.

Use these commands in order to disable the signatures:

ASA(config)#ip audit signature 2151 disable

ASA(config)#ip audit signature 2150 disable

Error:- %PIX|ASA-4-402119: IPSEC: Received a protocol packet (SPI=spi, sequence number= seq_num) from remote_IP (username) to local_IP that failed anti-replay checking.

Problem

I received this error in the log messages of the ASA:

Error:- %PIX|ASA-4-402119: IPSEC: Received a protocol packet (SPI=spi, sequence number= seq_num) from remote_IP (username) to local_IP that failed anti-replay checking.

Solution

In order to resolve this error, use the crypto ipsec security-association replay window-size command in order to vary the window size.

hostname(config)#crypto ipsec security-association replay window-size 1024

Note: Cisco recommends that you use the full 1024 window size to eliminate any anti-replay problems.

Error Message – %PIX|ASA-4-407001: Deny traffic for local-host interface_name:inside_address, license limit of number exceeded

Problem

Few hosts are unable to connect to the Internet, and this error message appears in the syslog:

Error Message - %PIX|ASA-4-407001: Deny traffic for local-host interface_name:inside_address, license limit of number exceeded

Solution

This error message is received when the number of users exceeds the user limit of the license used. This error can be resolved by upgrading the license to a higher number of users. The user license can include 50, 100, or unlimited users as required.

Error Message – %VPN_HW-4-PACKET_ERROR:

Problem

The Error Message - %VPN_HW-4-PACKET_ERROR: error message indicates that ESP packet with HMAC received by the router are mismatched. This error might be caused by these issues:

  • Defective VPN H/W module
  • Corrupt ESP packet

Solution

In order to resolve this error message:

  • Ignore the error messages unless there is traffic disruption.
  • If there is traffic disruption, replace the module.

Error message: Command rejected: delete crypto connection between VLAN XXXX and XXXX, first.

Problem

This error message appears when you attempt to add an allowed VLAN on the trunk port on a switch: Command rejected: delete crypto connection between VLAN XXXX and VLAN XXXX, first..

The WAN edge trunk cannot be modified to allow additional VLANs. That is, you are unable to add VLANs in the IPSEC VPN SPAtrunk.

This command is rejected because allowing it will result in a crypto connected interface VLAN that belongs to the interface’s allowed VLAN list, which poses a potential IPSec security breach. Note that this behavior applies to all trunk ports.

Solution

Instead of the no switchport trunk allowed vlan (vlanlist) command, use the switchport trunk allowed vlan nonecommand or the "switchport trunk allowed vlan remove (vlanlist)" command.

Error Message – % FW-3-RESPONDER_WND_SCALE_INI_NO_SCALE: Dropping packet – Invalid Window Scale option for session x.x.x.x:27331 to x.x.x.x:23 [Initiator(flag 0,factor 0) Responder (flag 1, factor 2)]

Problem

This error occurs when you try to telnet from a device on the far end of a VPN tunnel or when you try to telnet from the router itself:

Error Message - % FW-3-RESPONDER_WND_SCALE_INI_NO_SCALE: Dropping packet - Invalid Window Scale option for session x.x.x.x:27331 to x.x.x.x:23 [Initiator(flag 0,factor 0) Responder (flag 1, factor 2)]

Solution

The user license can include 50, 100, or unlimited users as required. Window scaling was added to allow for rapid transmission of data on long fat networks (LFN). These are typically connections with very high bandwidth, but also high latency. Networks with satellite connections are one example of an LFN, since satellite links always have high propagation delays but typically have high bandwidth. To enable window scaling to support LFNs, the TCP window size must be more than 65,535. This error message can be resolved by increasing the TCP window size to be more than 65,535.

%ASA-5-305013: Asymmetric NAT rules matched for forward and reverse . Please update this issue flows

Problem

This error message appears once the VPN tunnel comes up:

%ASA-5-305013: Asymmetric NAT rules matched for forward and reverse . Please update this issue flows

Solution

In order to resolve this issue when not on the same interface as the host using NAT, use the mapped address instead of the actual address to connect to the host. In addition, enable the inspect command if the application embeds the IP address.

%PIX|ASA-5-713068: Received non-routine Notify message: notify_type

Problem

This error message appears if the VPN tunnel fails to come up:

%PIX|ASA-5-713068: Received non-routine Notify message: notify_type

Solution

This message occurs due to misconfiguration (that is, when the policies or ACLs are not configured to be the same on peers). Once the policies and ACLs are matched the tunnel comes up without any problem.

%ASA-5-720012: (VPN-Secondary) Failed to update IPSec failover runtime data on the standby unit (or) %ASA-6-720012: (VPN-unit) Failed to update IPsec failover runtime data on the standby unit

Problem

One of these error messages appear when you try to upgrade the Cisco Adaptive Security Appliance (ASA):

%ASA-5-720012: (VPN-Secondary) Failed to update IPSec failover runtime data on the standby unit.

%ASA-6-720012: (VPN-unit) Failed to update IPsec failover runtime data on the standby unit.

Solution

These error messages are informative errors. The messages do not impact functionality of the ASA or the VPN.

These messages appear when the VPN failover subsystem cannot update IPsec-related runtime data because the corresponding IPsec tunnel has been deleted on the standby unit. In order to resolve these, issue the wr standby command on the active unit.

Two bugs have been filed to address this behavior and upgrade to a software version of ASA where these bugs are fixed. Refer to Cisco bug IDs CSCtj58420 (registered customers only) and CSCtn56517 (registered customers only) for more information.

Error:- %ASA-3-713063: IKE Peer address not configured for destination 0.0.0.0

Problem

The %ASA-3-713063: IKE Peer address not configured for destination 0.0.0.0 error message appears and the tunnel fails to come up.

Solution

This message appears when the IKE peer address is not configured for a L2L tunnel. This error can be resolved by changing the sequence number of crypto map, then removing and reapplying the crypto map.

Error: %ASA-3-752006: Tunnel Manager failed to dispatch a KEY_ACQUIRE message.

Problem

The %ASA-3-752006: Tunnel Manager failed to dispatch a KEY_ACQUIRE message.Probable mis-configuration of the crypto map or tunnel-group." error message is logged on the Cisco ASA.

Solution

This error message can be caused by a misconfiguration of the crypto map or tunnel group. Ensure that both are configured properly. For more information about this error message, refer to Error 752006.

Here are some of the corrective actions:

  • Remove the crypto ACL (for example, associated to dynamic map).
  • Remove unused IKEv2 related configuration, if any.
  • Verify that the crypto ACL matched properly.
  • Remove duplicate access-list entries, if any.

Error: %ASA-4-402116: IPSEC: Received an ESP packet (SPI= 0x99554D4E, sequence number= 0x9E) from XX.XX.XX.XX (user= XX.XX.XX.XX) to YY.YY.YY.YY

In a LAN-to-LAN VPN tunnel setup, this error is received on one end ASA:

The decapsulated inner packet doesn't match the negotiated policy in the SA.

The packet specifies its destination as 10.32.77.67, its source as 10.105.30.1, and its protocol as icmp.

The SA specifies its local proxy as 10.32.77.67/255.255.255.255/ip/0 and its remote_proxy as 10.105.42.192/255.255.255.224/ip/0.

Solution

You need to verify the interesting traffic access-lists defined on both ends of the VPN tunnel. Both should match as exact mirror images.

Failed to launch 64-bit VA installer to enable the virtual adapter due to error 0xffffffff

Problem

The Failed to launch 64-bit VA installer to enable the virtual adapter due to error 0xffffffff log message is received when AnyConnect fails to connect.

Solution

Complete these steps in order to resolve this issue:

  1. Go to System > Internet Communication Management > Internet Communication settings and make sure that Turn Off Automatic Root Certificates Update is disabled.
  2. If it is disabled, then disable the entire Administrative Template part of the GPO assigned to the affected machine and test again.

Refer to Turn off Automatic Root Certificates Update leavingcisco.com for more information.

Error 5: No hostname exists for this connection entry. Unable to make VPN connection.

Problem

The Error 5: No hostname exists for this connection entry. Unable to make VPN connection error message is received during a new PC installation.

Solution

This issue is due to Cisco bug ID CSCso94244 (registered customers only) . Refer to this bug for more information.

Cisco VPN Client Does Not Work with Data Card on Windows 7

Problem

Cisco VPN Client does not work with data card on Windows 7.

Solution

Cisco VPN Client installed on Windows 7 does not work with 3G connections since data cards are not supported on VPN clients installed on a Windows 7 machine.

Warning Message: “VPN functionality may not work at all”

Problem

When trying to enable the isakmp on the outside interface of ASA, this warning message is received:

ASA(config)# crypto isakmp enable outside
WARNING, system is running low on memory.  Performance may start to degrade.
VPN functionality may not work at all.

At this point, access to ASA through ssh. HTTPS is stopped and other SSL clients are also affected.

Solution

This problem is due to memory requirements by different modules such as logger and crypto. Make sure you do not have thelogging queue 0 command. It makes the queue size set to 8192 and the memory allocation shoots up.

In platforms such as ASA5505 and ASA5510, this memory allocation tends to memory-starve other modules (IKE and etc.). Cisco bug ID CSCtb58989 (registered customers only) has been logged to address a similar kind of behavior. In order to resolve this, configure the logging queue to a lesser value, such as 512.

IPSec Padding error

Problem

This error message is received:

%PIX|ASA-3-402130: CRYPTO: Received an ESP packet (SPI =
	 0xXXXXXXX, sequence number= 0xXXXX) from x.x.x.x (user= user) to y.y.y.y with
	 incorrect IPsec padding

Solution

The issue occurs because the IPSec VPN negotiates without a hashing algorithm. Packet hashing ensures integrity check for the ESP channel. Therefore, without hashing, malformed packets are accepted undetected by the Cisco ASA and it attempts to decrypt these packets. However, because these packets are malformed, the ASA finds flaws while decrypting the packet. This causes the padding error messages that are seen.

The recommendation is to include a hash algorithm in the transform set for the VPN and to ensure that the link between the peers has minimum packet malformation.

Dead Air delay time on remote site phones

Problem

Dead air delay time is experienced on remote site phones. How is this resolved?

Solution

Disable skinny and sip inspection in order to resolve this problem:

asa(config)# no inspect sip
asa(config)# no inspect skinny

VPN tunnel gets disconnected after every 18 hours

Problem

The VPN tunnel gets disconnected after every 18 hours even though the lifetime is set for 24 hours.

Solution

The lifetime is the maximum time the SA can be used for rekeying. The value you enter in the configuration as the lifetime is different from the rekey time of the SA. Therefore, it is necessary to negotiate a new SA (or SA pair in the case of IPsec) before the current one expires. The rekey time must always be smaller than the lifetime in order to allow for multiple attempts in case the first rekey attempt fails. The RFCs do not specify how to calculate the rekey time. This is left to the discretion of the implementers. Therefore, the time will vary depending on the platform used, which software version, etc.

Some implementations can use a random factor to calculate the rekey timer. For example, if the ASA initiates the tunnel, then it is normal that it will rekey at 64800 seconds = 75% of 86400. If the router initiates, then the ASA can wait longer to give the peer more time to initiate the rekey. Thus, it is normal that the VPN session gets disconnected every 18 hours to use another key for the VPN negotiation. This must not cause any VPN drop or problem.

Traffic flow is not maintained after the LAN to LAN tunnel is re-negotiated

Problem

Traffic flow is not maintained after the LAN to LAN tunnel is re-negotiated.

Solution

The ASA monitors every connection that passes through it and maintains an entry in its state table according to the application inspection feature. The encrypted traffic details that pass through the VPN are maintained in the form of a security association (SA) database. For LAN to LAN VPN connections, it maintains two different traffic flows. One is the encrypted traffic between the VPN gateways. The other is the traffic flow between the network resource behind the VPN gateway and the end-user behind the other end. When the VPN is terminated, the flow details for this particular SA are deleted. However, the state table entry maintained by the ASA for this TCP connection becomes stale because of no activity, which hampers the download. This means the ASA will still retain the TCP connection for that particular flow while the user application terminates. However, the TCP connections will become stray and eventually timeout after the TCP idle-timer expires.

This problem has been resolved by introducing a feature called Persistent IPSec Tunneled Flows. A new command, sysopt connection preserve-vpn-flows, has been integrated into the Cisco ASA in order to retain the state table information at the re-negotiation of the VPN tunnel. By default, this command is disabled. By enabling this, the Cisco ASA will maintain the TCP state table information when the L2L VPN recovers from the disruption and re-establishes the tunnel.

Error message states that Bandwidth reached for the Crypto functionality

Problem

This error message is received on the 2900 Series Router:

Error: Mar 20 10:51:29: %CERM-4-TX_BW_LIMIT: Maximum Tx Bandwidth limit of 85000 Kbps reached for Crypto functionality with securityk9 technology package license.

Solution

This is a known issue that occurs because of the strict guidelines issued by the United States government. According to this, the securityk9 license can only allow a payload encryption up to rates close to 90Mbps and limit the number of encrypted tunnels/TLS sessions to the device. For more information about the crypto export restrictions, refer to Cisco ISR G2 SEC and HSEC Licensing.

In case of Cisco devices, it is derived to be less than 85Mbps unidirectional traffic in or out of the ISR G2 router, with a bidirectional total of 170 Mbps. This requirement applies for the Cisco 1900, 2900, and 3900 ISR G2 platforms. This command helps you in viewing these limitations:

Router#show platform cerm-information
Crypto Export Restrictions Manager(CERM) Information:
CERM functionality: ENABLED
 ----------------------------------------------------------------
 Resource                       Maximum Limit           Available
 ----------------------------------------------------------------
 Tx Bandwidth(in kbps)          85000                   85000
 Rx Bandwidth(in kbps)          85000                   85000
 Number of tunnels                 225                       225
 Number of TLS sessions        1000                    1000
---Output truncated----

There is a bug filed to address this behavior. Refer to Cisco bug ID CSCtu24534 (registered customers only) for more information.

In order to avoid this problem, you need to purchase a HSECK9 license. An “hseck9” feature license provides enhanced payload encryption functionality with increased VPN tunnel counts and secure voice sessions. For more information about Cisco ISR Router licensing, refer to Software Activation.

Problem: Outbound encryption traffic in an IPsec tunnel may fail, even if inbound decryption traffic is working.

Solution

This issue has been observed on an IPsec connection after multiple rekeys, but the trigger condition is not clear. The presence of this issue can be established by checking the output of the show asp drop command and verifying that the Expired VPN context counter increases for each outbound packet sent. Refer to Cisco bug ID CSCtd36473 (registered customers only) for more information.

Miscellaneous

AG_INIT_EXCH Message Appears in the “show crypto isakmp sa” and “debug” Commands Output

If the tunnel does not get initiated, the AG_INIT_EXCH message appears in output of the show crypto isakmp sa command and indebug output as well. The reason can be due to mismatching isakmp policies or if port udp 500 gets blocked on the way.

Debug Message “Received an IPC message during invalid state” Appears

This message is an informational message and has nothing to do with the disconnection of the VPN tunnel.





Source:

http://www.cisco.com/c/en/us/support/docs/security/asa-5500-x-series-next-generation-firewalls/81824-common-ipsec-trouble.html#solution13
